Submarines in the Pacific War

statistics:

OWI Poster "Hit'em Where it Hurts! Join the Submarine Service", ca. 1943 (NARA photo NWDNS-44-PA-23)

• 200 U.S. subs sank 201 Japan warships and 1113 merchant ships
• total Japan loss of 4.7m tons, 55% total ships
• 211 subs built - 182 operational peak in 1945
• U.S. would lose 52 subs with 3503 crew
• Japan lost 112 subs; had 60 at start of war
• Germany lost 784 subs with 28,000 crew
  • 1162 German subs built
  • 240 operational peak
  • sank 5150 ships, 21m tons Allied shipping

evolution:

• The Pacific Submarine Force began 1914 in Hawaii with four F-class boats
• 1921-33 - built 9 enormous V-class subs such as the 381' Argonaut - largest diesel sub built in US
• 1933-41 - built 56 new fleet subs; FDR was sub booster
• new design better than old S-class
  • 1500 tons, 300' long, 10,000 mi. range at 20 knots
  • underwater 9 knots, up to 72 hours
  • 4 electric motors for underwater, 252 batteries
  • 4 diesel motors for surface
  • carried 24 torpedos (4 stern tubes, 6 bow)
  • Mark 10 contact torpedo, Mark 16 magnetic torpedo
  • 4 deck guns: one 5", one 40mm, two 20mm forward
  • crew of 70 - tours of 60 days
  • periscope depth of 63' and extended 12' out of water
  • not visible until in range at 1200 yds
• 1930 London Naval Treaty required subs to remove passengers and crew to safety
• at first painted black, then changed to gray
• original tactics: deep submerge, locate target with sonar ping, fire torpedo at 100' depth, but no ship ever sunk by this method

strategy:

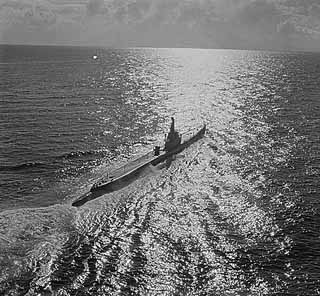

U.S. Pacific submarine on war patrol. Pacific sunlight silvers the sea, July, 1945 (NARA photo NWDNS-80-G-335390)

• until 1943, subs used individually for hit-and-run missions and support of surface ships
• but 1943 began systematic patrols of key traffic patterns rather than stay on perimeter
• July 1943 began to penetrate 4 straits into Sea of Japan
• emphasis on "Luzon bottleneck" - Luzon strait where oil imported from Sumatra and Java
  • 80% oil came from U.S. before war; stockpiled 1 year supply
  • 1943 imported 1.5m bbls per month; 1944 imports cut to 300,000 bbls by Nov.

bases:

• before war, bases at Pearl Harbor and Cavite (in Manila Harbor, not Subic Bay)
• after Pearl harbor, at Freemantle (SW near Perth) under Charles Lockwood, also at Brisbane
• after Marshalls taken (Eniwetok Feb. '44), base at Majuro atoll
• after Marianas taken (Saipan, Guam June '44), base at Apra harbor at Guam
• after Carolines attacked (Pelilieu Sept. '44), base at Ulithi atoll beg. Nov '44

innovations:

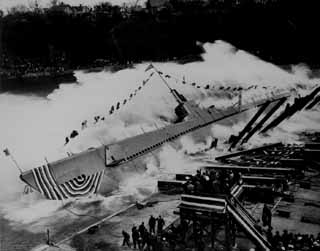

Launching of USS Robalo, May 9, 1943, at Manitowoc Shipbuilding Co., Manitowoc, Wis. 5/9/1943 (Patch NA photo)

• new SJ radar (surface ships) replaced older SD radar (aircraft only)
• Japan navy lacked radar in 1941
• PPI (plan position indicator) showed all blips in radar range in correct geographic arrangement
• TBT (target bearing transmitter) - night binoculars on bridge on rotating base to calculate bearing
• new GM engines replaced old HOR engines (German) that had weak gear wheel teeth and made noise
• adopted wolf-pack techniques
• but main problem was torpedos - persistent difficulty with Mark 14 magnetic exploder
• Dudley Morton on the Wahoo used tactics to compensate
• "down-the-throat" shot of full salvo of 6 torpedoes at point-blank range

1944 - key year of greatest successes:

• new electric Mark 18 torpedo - no bubbles, but slower
• used in 75% of kills by July
• new acoustic Mark 27 with sonar was only 10' long
• 7000 yd range - must be silent to launch
• new 5" deck gun, fathometer without pings, periscope with built-in radar
• short range FM sonar against mines

Leyte Gulf - Oct. 1944:

• completed destruction of Japan navy
• U.S. subs allowed to blockade Japan home islands, Formosa strait
• voyage of the Tang earned Medal of Honor for survivor Dick Kane, who had served on the USS Wahoo in 1942-43

1942 Pacific - 1600 - 3700

1942 Atlantic - see Atlantic War
